All Captive Broaching Fasteners for PCBs, install into a round hole, which may be drilled in non-ductile materials. Captive Broaching Fasteners are pressed into printed circuit boards and non-ductile materials and held permanently in place by an interference fit.
Common types of Self Broaching Fasteners:
Nuts, Studs, Stand-offs



CKF2 and CKFS2 Broaching-Type Fasteners are designed for use on printed circuit boards and on most brittle or hard materials: glass laminates, epoxy or resin with paper, nylon, or canvas bases. They are also used on materials too thin or unsuitable for threading, such as acrylic and polycarbonate panels.

Series
Material
Finish
CKF2

Carbon Steel

Electro tin plating
CKFS2

300 Series
Stainless Steel
Passivated ASTM A380
Spec. ASTM B633-85

Since the aforementioned materials do not flow under pressure, these fasteners are designed with a knurled shank that can be pressed into a drilled hole. The shank grips the board with an interference fit by broaching its way into the panel as it is squeezed into the holes. All fasteners from Captive Fastener are identical to industry standards so that they can be fed through standard automatic insertion equipment.

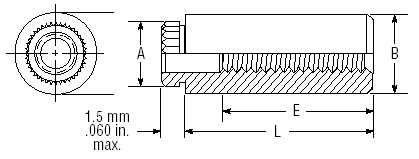

CKFE and CKFSE threaded and non-threaded standoffs allow screws to be inserted through ultiple layered boards for stacked assemblies. All fasteners from Captive Fastener are identical to Industry standards so that they can be fed through standard automatic insertion equipment.

Series
Material
Finish
CKFE

Carbon Steel

Electro tin plating ASTM B545 Class B (Zinc* Clear Optional)
CKFSE

300 Series
Stainless Steel
Passivated ASTM A3800
Spec. ASTM B633-85
Thread  : Class 2B, MIL-S-7742; (6H ISO Metric).
Use in   : CKFE - Materials with Rockwell Hardness of B-60 or less.
CKFSE - Materials with Rockwell Hardness of B-70 or less.
Part Number Structure:
Note: CKFE & CKFSE broaching

Standoffs are designed for unplated through-holes. When installed in plated through-holes, a hole tolerance of +.005 - .001 in. (+.13 - .03 mm) should be used. When used in plated through-holes performance will be reduced and plating may be damaged by knurl. † Not stocked, available on special order.



CKFH Broaching-Type Studs are electroplated with tin so they are readily solderable. Thus, they can be used both as solderable connectors and as permanently mounted mechanical fasteners.

Spec. ASTM B633-85

Thread: Class 2A, MIL-S-7742; (6g ISO Metric).
Use in: Materials with Rockwell Hardness of B-55 or less.
Series
Material
Finish
CKFH

Phosphor Bronze
CDA-510

Electro tin plating ASTM B545 Class B (Zinc* Optional)
